Silage quality improves with this heavy-duty silage spreader engineered for uniform layer distribution, supporting consistent compaction across the silage stack.

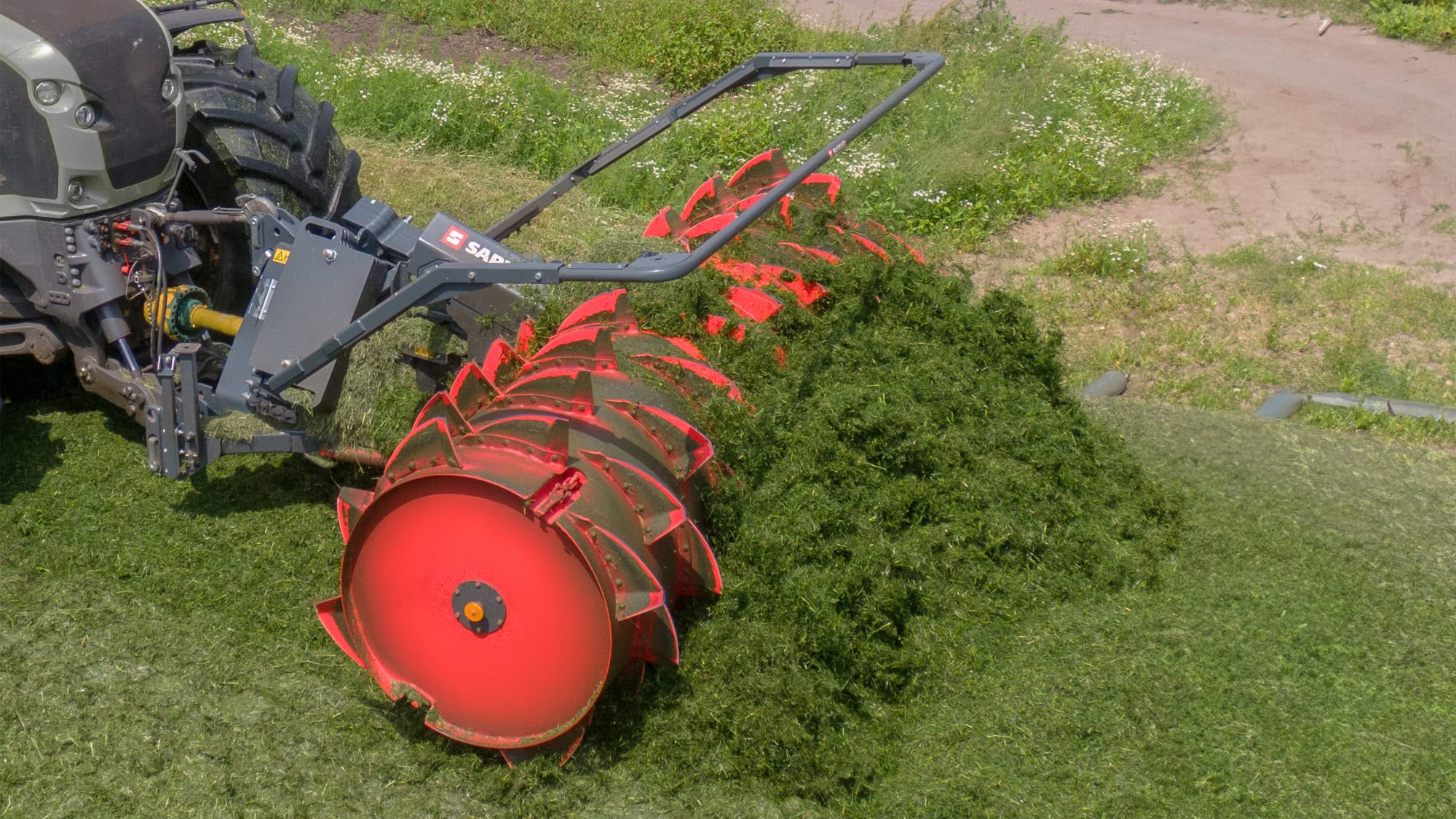

Silage heap quality begins at the point of distribution, and the SiloRaptor is engineered to get it right on every pass. A 1,230mm drum with bolted spreading tools at 150mm height delivers powerful, uniform silage distribution across the full heap width. Hydraulic 20° bilateral swivel provides precise edge coverage. Optional weight plates add up to 425 kg ballast for enhanced stability. The Walterscheid cam clutch protects the drivetrain as standard. Quick-fit 200mm drum extensions, outward-facing lubrication points, and large maintenance openings complete the most capable and serviceable silage spreader available.
Download the SAPHIR Product Catalogue for all details on your preferred product options.
Silage quality at feedout is determined by what happens at the point of deposition. Uniform layer distribution during heap building is the precondition for effective compaction, and effective compaction is the precondition for the oxygen exclusion that drives quality fermentation, minimises dry matter losses, and produces the face integrity that limits aerobic spoilage across the storage and feedout period. A heap built with uneven density from poor distribution is harder to compact uniformly, more prone to instability at the face, and more likely to deliver variable feed quality across the feeding period. The SAPHIR SiloRaptor eliminates that variability at the point where it originates, where silage first contacts the heap.
Drum Engineering: The Distribution Foundation
The 1,230mm drum diameter is the SiloRaptor’s central engineering parameter. Larger drum diameter generates higher peripheral velocity at the spreading tool tips for a given rotational speed, and higher peripheral velocity produces greater centrifugal force on the silage material, greater throw distance, and therefore wider effective distribution coverage per machine pass. The result is full-width heap coverage from a single working position, without the short-throw coverage gaps that smaller drum alternatives generate and that require corrective spreading passes to address.
The spreading tools are bolted to the drum at 150mm height, providing the material engagement required across the range of crop types, chop lengths, and dry matter contents encountered in commercial grass, maize, and whole crop harvesting. Bolted mounting allows individual tool replacement when wear or impact damage occurs, maintaining spreading geometry and distribution quality without drum removal or replacement across the machine’s service life.
The arrangement of spreading tools on the drum surface, the specific angular and axial positioning of each tool relative to the drum axis and to neighbouring tools, is engineered to produce uniform distribution across the full spread width rather than concentrating material in specific radial zones. This tool geometry is what differentiates a machine that distributes uniformly from one that simply throws material at distance, and it is the design detail that determines whether the heap is built in the consistent, workable layers that compaction equipment can process effectively.
Hydraulic Swivel: Edge Quality Without Compromise
The 20-degree bilateral hydraulic swivel is an operational capability with direct silage quality consequences. Heap edges are the most challenging zone to manage in clamp operations, the boundary between deposited material and the clamp wall where incomplete coverage creates the voids, density irregularities, and water ingress points that initiate aerobic spoilage and structural instability in edge silage across the storage period. Without precise edge control, the operator must choose between compromised edge coverage from a fixed spreading position or time-consuming tractor repositioning that interrupts the deposition cycle and reduces operational efficiency.
The SiloRaptor’s hydraulic swivel eliminates both compromises. Operated from the tractor cab, the 20-degree bilateral movement redirects the drum and spreading arc toward the heap boundary while maintaining forward progress, depositing material at the heap edge with the same uniform quality achieved at the centre, without stopping, repositioning, or corrective manual spreading.
Ballast System: Stability Under Operational Demand
The SiloRaptor’s robust structural design and high inherent dead weight provide the foundation for smooth running stability at the rotational speeds required for effective silage distribution. High machine weight minimises the vibration and oscillation that lighter machines exhibit when the drum encounters variable resistance from different silage consistencies, batch sizes, or heap surface conditions, maintaining consistent spreading tool geometry and distribution uniformity throughout the working cycle.
The optional weight plate system allows up to 425kg’s of additional ballast to be added when heap conditions, crop density, or operational requirements demand maximum machine stability beyond the base configuration. Weight plates mount to the machine structure without specialist tooling, providing the ballasting flexibility to optimise machine behaviour for each specific harvesting scenario without permanent machine modification.
Walterscheid Cam Clutch: Drivetrain Protection as Standard
The Walterscheid cam clutch installed as standard ahead of the transmission reflects the demanding torque environment of silage heap spreading work. Consolidated silage layers, surface irregularities, large material inclusions, and the variable resistance that different crop types present at high spreading speeds all generate the peak torque events that, without protection, transmit directly through the gearbox and PTO drivetrain. The cam clutch absorbs those peaks through controlled slip at the threshold torque level, preventing transmission damage and eliminating the repair cost and operational downtime that unprotected drivetrain failures in field conditions create.
Walterscheid specification, original equipment rather than a substitute supplier’s equivalent reflects the quality standard that the torque demands of commercial silage heap work place on this component. A clutch that fails or slips prematurely under the conditions it is designed to manage is not protection, the standard Walterscheid fitment ensures the protection performs when the operational demands that require it actually occur.
Drum Extension: Operational Flexibility on Demand
The 200mm per side quick-fit drum extension provides the additional distribution width for operations where heap geometry, crop volume, or contractor preference requires broader coverage per pass. Quick-fit mounting makes the extension a field-deployable option, available when the operation requires greater width, removed when it does not, without the workshop time that conventional component changes in agricultural equipment typically demand.
Serviceability: Designed for Field Conditions
The outward-facing lubrication point positioning and large maintenance opening design reflect a clear-eyed understanding of where and when agricultural equipment maintenance is actually performed. Lubrication points that require reaching into confined machine spaces, past obstructions, or beneath the machine are points that receive inadequate service frequency in field conditions, and infrequent lubrication is the most common cause of premature bearing failure in high-load agricultural machinery. SiloRaptor’s outward-positioned points are accessible with a grease gun from a standing position, in the time the task requires when the access design does not obstruct the process. Large maintenance openings allow complete visual inspection and hands-on component access, enabling operators to identify wear, check condition, and perform the servicing that keeps the machine at peak distribution performance across seasons.
