Works with you. Targeted, high-volume airflow from the wall, with maximum reach, built tough for the demanding environments you work in.

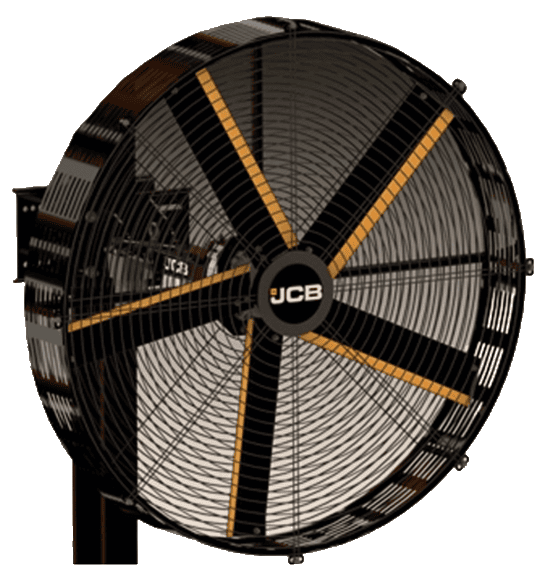

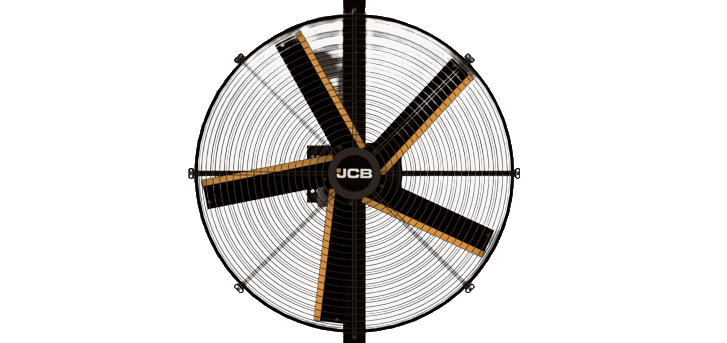

Where ceiling-mounted HVLS fans are impractical, the JCB FLEX NXT 5E delivers targeted, high-volume airflow from the wall. Six aerofoil blades at 1.5m diameter generate 54,000 m³/h reaching up to 15 metres with 120° oscillation coverage across approximately 100m². A high-efficiency PMSM motor operates at just 1.1 kW with stepless speed control and IP65 protection. Corrosion-resistant aluminium 6061 T6 blade construction with black anodised finish. Safety-compliant blade cage included. CE and Intertek certified. The professional wall-mounted airflow solution for agricultural, industrial, and commercial environments.
Large-volume ceiling-mounted HVLS fans are the optimal ventilation solution for open-span agricultural and industrial buildings — but not every structure has the ceiling height, structural capacity, or building geometry to accommodate overhead installation. Processing facilities with low-profile rooflines, barn sections with structural obstructions, calving areas requiring directional spot cooling, outdoor feed storage areas, and open-sided structures without overhead mounting points all present ventilation requirements that ceiling-mounted systems cannot serve. The JCB FLEX NXT 5E is engineered to serve exactly those requirements, delivering industrial-grade, targeted, high-volume airflow from wall-mounted positions across any environment where overhead installation is not viable or not optimal.
Airflow Performance and Coverage
The FLEX NXT 5E generates 54,000 m³/h of directed airflow through six aerofoil-profile blades at 1.5m diameter, an output level that classifies it firmly as an industrial fan rather than a commercial comfort fan. The six-blade configuration at this diameter generates higher airflow volume than the five-blade arrangement used in larger ceiling-mounted HVLS units of equivalent power consumption, because the wall-mounted directional application benefits from a denser blade pattern that maximises the velocity of the directed air column rather than optimising for the downward-and-outward distribution that ceiling-mounted fans require.
The 15-metre effective airflow reach means that a single FLEX NXT 5E unit can serve the full depth of a large structural bay from a wall-mounted position at one end, eliminating the multi-unit installations that shorter-reach fans require to achieve equivalent zone coverage. The 120-degree oscillation range sweeps that 15-metre reach across approximately 100m² of floor area, distributing the cooling benefit across the full zone width in a continuous arc rather than fixing it in a single direction that serves only the animals or workers directly in its path.
Motor Engineering and Energy Efficiency
The PMSM direct-drive motor achieves 54,000 m³/h of airflow output at a maximum power consumption of 1.1 kW, an energy efficiency ratio that makes the FLEX NXT 5E one of the most economical industrial wall fans available for its output category. The brushless PMSM design eliminates the brush wear that limits conventional motor service life, removing the primary maintenance requirement of induction motor alternatives. The direct gearless drive eliminates the transmission losses, mechanical complexity, and gear maintenance requirements of geared motor systems.
IP65 motor rating means complete dust ingress protection and resistance to pressurised water jets from any direction, providing the environmental protection that agricultural and processing environments demand. Industrial and agricultural processing environments expose equipment to continuous exposure to the likes of ammonia, dust, moisture, and the high-pressure cleaning protocols that biosecurity management requires. IP65 protection ensures the motor maintains its performance and service life integrity across those conditions without degradation or protection failure.
Agricultural Applications
In dairy and livestock barn environments, the FLEX NXT 5E serves the ventilation requirements that the ProAir HVLS ceiling range cannot reach — calving pens with low-profile rooflines, loose housing areas with structural obstructions, feed storage areas requiring air movement to reduce heating and condensation, and open-sided structures where wall mounting is the only practical option. The combination of 15-metre reach and 120-degree oscillation provides the spatial coverage that ensures every animal in the target zone receives consistent airflow reducing heat stress, moisture removal and maintaining air quality, and supporting the hoof hygiene and respiratory health outcomes that consistent air movement in livestock environments delivers. Importantly the strength of the air movement also eliminates insects and fly’s further enhancing comfort and bio-security.
For milking parlour environments, the FLEX NXT 5E’s sub-70 dBA noise level at 1 metre maintains the calm environment that minimises animal stress during milking — while its 1.1 kW maximum power consumption keeps the operational energy cost of parlour ventilation at a level that justifies continuous use across milking cycles.
Industrial and Processing Applications
In warehouse, processing, and manufacturing environments, the FLEX NXT 5E addresses the spot cooling and targeted airflow requirements of work stations, loading bays, outdoor covered areas, and the structural zones that ceiling-mounted systems cannot reach from overhead. The wall-mounted format allows precise positioning to direct airflow across specific work areas, conveyor lines, packing stations, vehicle loading positions, and any fixed-activity location where occupant cooling and air quality improvement deliver direct productivity and welfare returns.
Safety and Compliance
The safety-compliant blade cage is a mandatory feature for wall-mounted fan deployment in occupied agricultural and industrial environments, providing the physical protection between rotating blades and personnel, animals, or equipment in the proximate zone that wall-mounting positions require. The cage meets industrial safety compliance standards and enables the 3–4 metre floor clearance installation height that brings the fan into effective operational proximity with the work zones it serves.
Installation Flexibility
Multiple mounting configuration options provide the installation flexibility required to optimise FLEX NXT 5E positioning across diverse structural environments. Wall mounting at 3–4 metres above floor level, the minimum clearance specification places the fan at the height that maximises both the reach and the oscillation arc coverage for floor-level airflow delivery. The 70 kg installed weight is manageable within standard wall-mounting structural requirements across the concrete and steel construction typical of agricultural and industrial buildings.
